MOC narrow-angle image S04-00078

Ridges on intercrater highlands south of Aeolis/Nepenthes Mensae

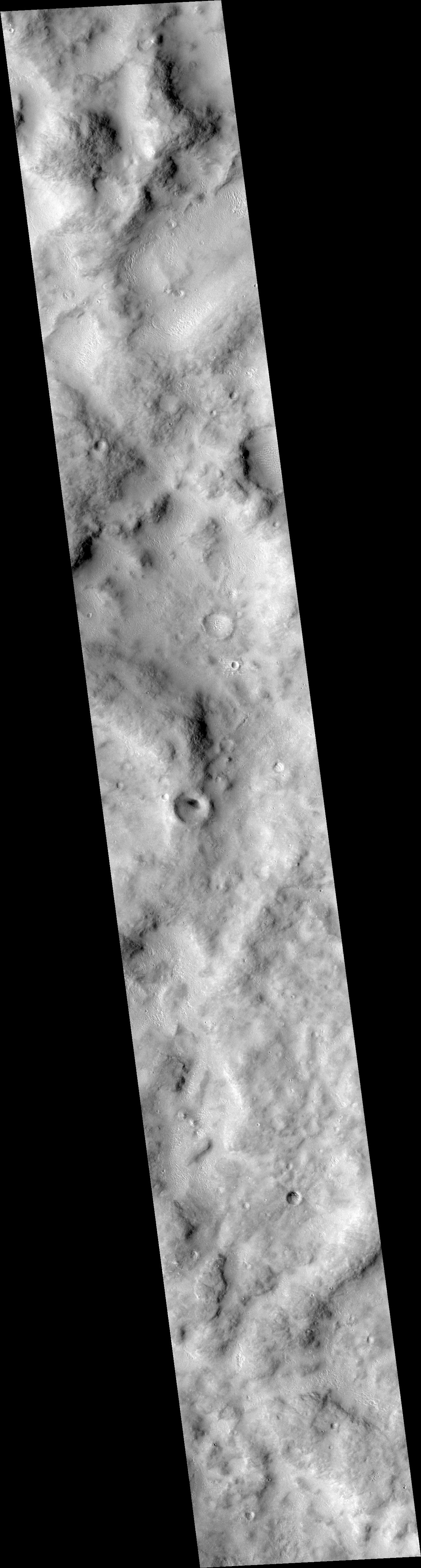

MOC narrow-angle image S04-00078

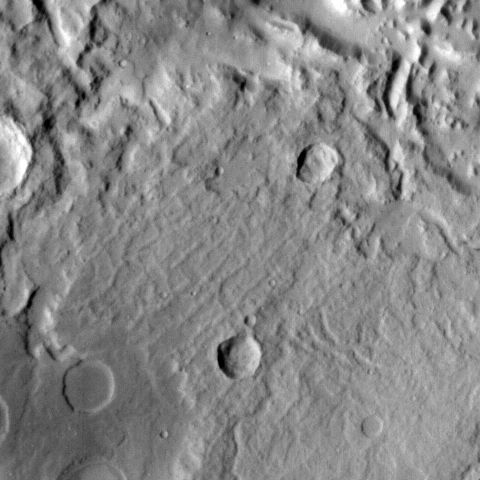

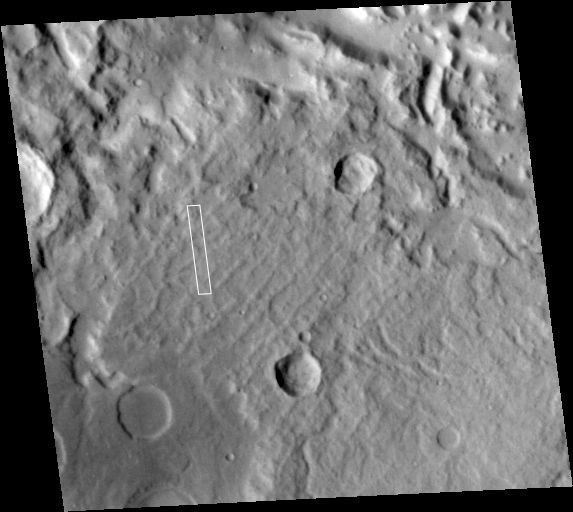

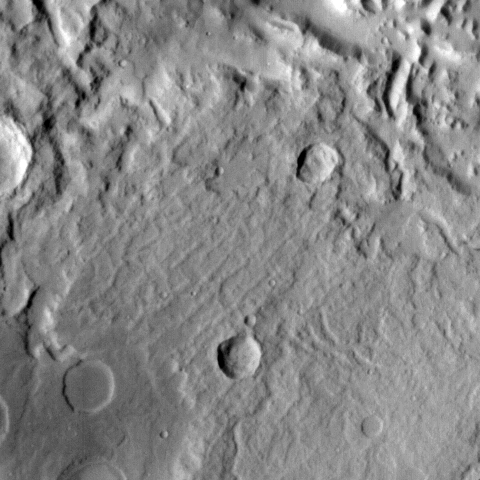

Map projection is sinusoidal, using 233.52 degrees W as prime meridian 		MOC red wide-angle context image S04-00079
MOC narrow-angle image S04-00078
Map projection is sinusoidal, using 233.52 degrees W as prime meridian 		MOC red wide-angle context image S04-00079
View full-size processed and map-projected image
(lossy JPEG, medium quality, rapid download)		 View full-size processed and map-projected image
(lossy JPEG, medium quality, rapid download)
View full-size processed and map-projected image
(lossless GIF, best quality, slow download)		 View full-size processed and map-projected image
(lossless GIF, best quality, slow download)

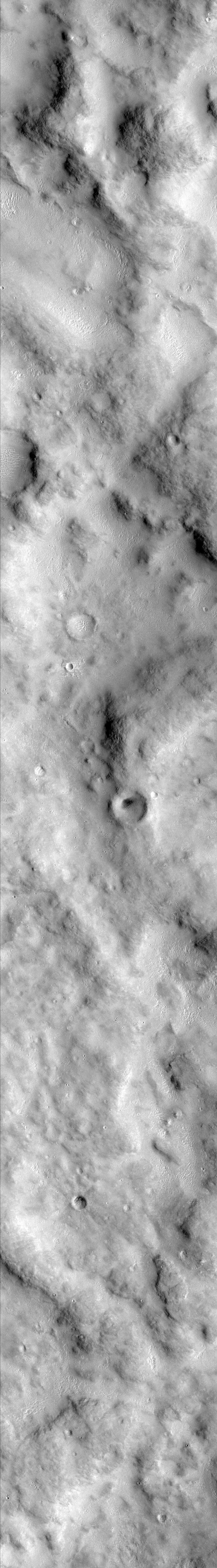

View full-size image, processed but NOT map-projected
(lossy JPEG, medium quality, rapid download)		 View full-size image, processed but NOT map-projected
(lossy JPEG, medium quality, rapid download)
View full-size image, processed but NOT map-projected
(lossless GIF, best quality, slow download)		 View full-size image, processed but NOT map-projected
(lossless GIF, best quality, slow download)
Download processed image in PDS .IMG format Download processed image in PDS .IMG format
Download compressed raw data in PDS .IMQ format Download compressed raw data in PDS .IMQ format

Ancillary data for MOC narrow-angle image S04-00078

Acquisition parameters
     Image ID (picno): S04-00078
     Image start time: 2005-03-02T14:43:10.49 SCET
         Image  width:    672      pixels
         Image height:   4864      pixels
Line integration time:      0.4821 millisec
   Pixel aspect ratio:      0.98
   Crosstrack summing:      3
    Downtrack summing:      3
     Compression type: MOC-PRED-X-5
            Gain mode:     6A (hexadecimal)
          Offset mode:     42 (decimal)
Derived values
Longitude of image center:    233.52°W
 Latitude of image center:      0.55°S
       Scaled pixel width:      4.55   meters
      Scaled image  width:      3.05   km
      Scaled image height:     21.66   km
     Solar longitude (Ls):    168.82°
    Local True Solar Time:     14.89   decimal hours
           Emission angle:     18.06°
          Incidence angle:     43.78°
              Phase angle:     43.55°
            North azimuth:     92.95°
              Sun azimuth:     10.40°
      Spacecraft altitude:    385.53   km
           Slant distance:    403.30   km

Policy regarding use of processed images

Release date: 12 October 2005
