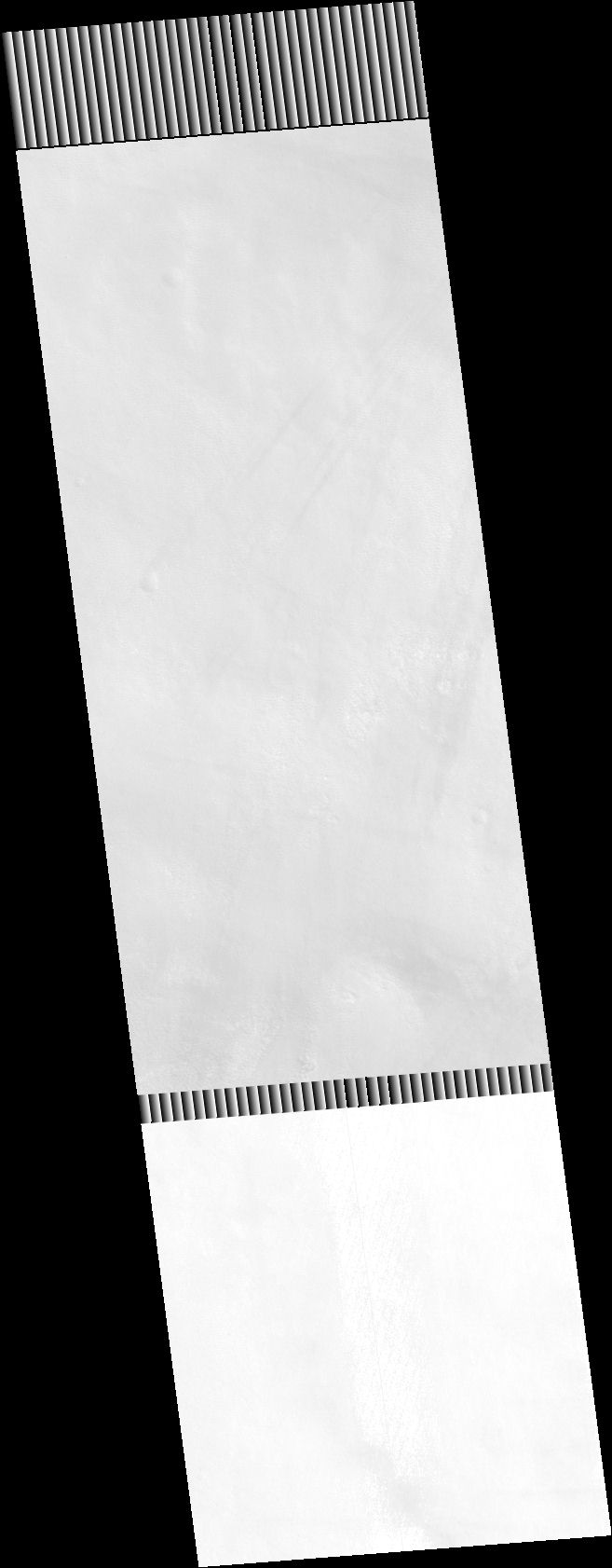

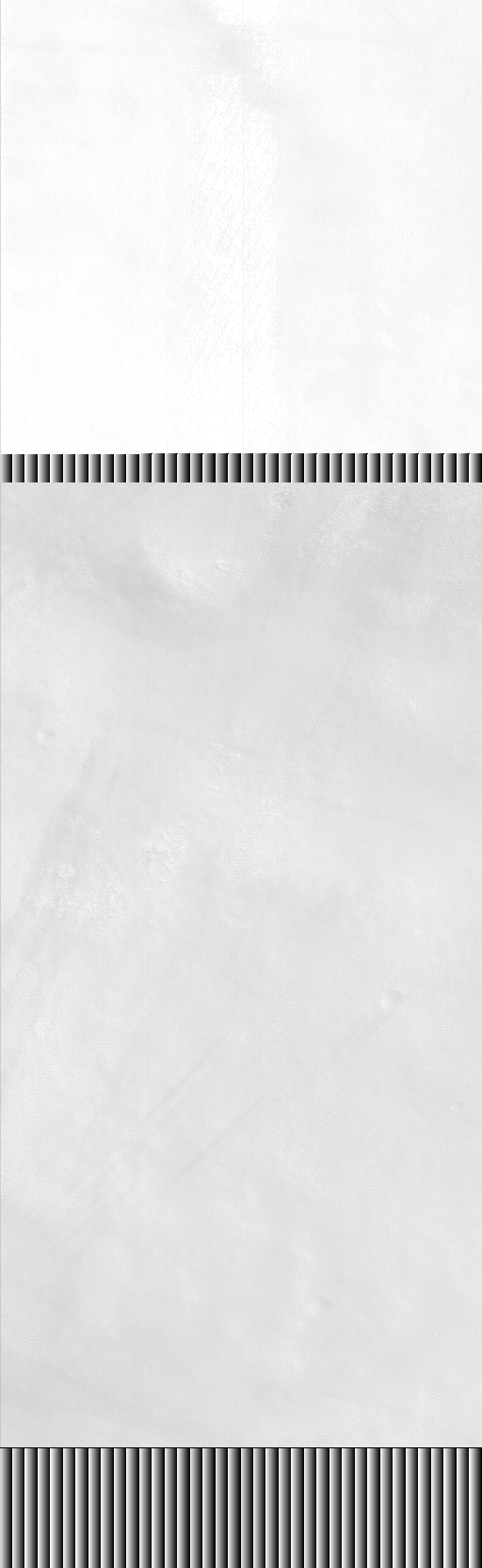

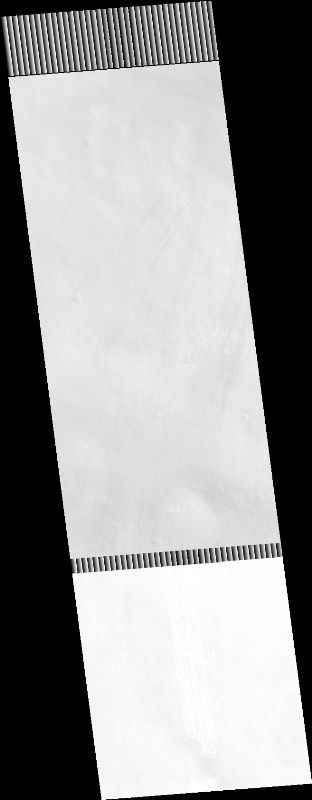

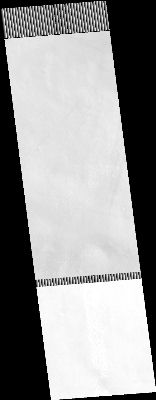

MOC narrow-angle image M10-00081

Traverse across crater in N Acidalia at 49.8 N 34.7 W

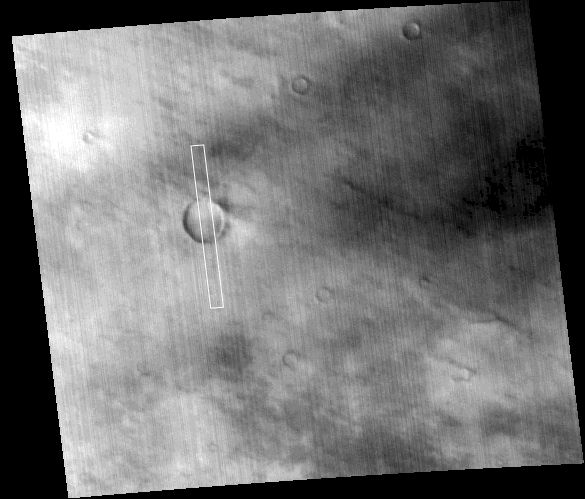

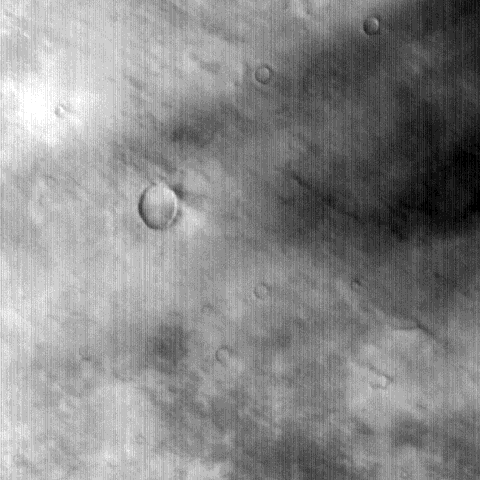

MOC narrow-angle image M10-00081 MOC red wide-angle context image M10-00082
MOC narrow-angle image M10-00081 MOC red wide-angle context image M10-00082
View full-size image, processed, in sinusoidal projection using 34.97°W as prime meridian
(lossy JPEG, medium quality, rapid download)		 View full-size image, processed, in sinusoidal projection
(lossy JPEG, medium quality, rapid download)
View full-size image, processed, in sinusoidal projection using 34.97°W as prime meridian
(lossless GIF, best quality, slow download)		 View full-size image, processed, in sinusoidal projection
(lossless GIF, best quality, slow download)
View full-size image, processed but NOT map-projected View full-size image, processed but NOT map-projected
Download processed image in PDS .IMG format Download processed image in PDS .IMG format
Download compressed raw data in PDS .IMQ format Download compressed raw data in PDS .IMQ format

Ancillary data for MOC narrow-angle image M10-00081

Acquisition parameters
     Image ID (picno): M10-00081
     Image start time: 1999-12-01T17:27:30.65 SCET
         Image  width:    512      pixels
         Image height:   5632      pixels
Line integration time:      0.6026 millisec
   Pixel aspect ratio:      1.15
   Crosstrack summing:      4
    Downtrack summing:      4
     Compression type: MOC-PRED-X-5
            Gain mode:     0A (hexadecimal)
          Offset mode:     34 (decimal)
Derived values
Longitude of image center:     34.97°W
Latitude  of image center:     49.86°N
       Scaled pixel width:      6.25   meters
      Scaled image  width:      3.21   km
      Scaled image height:     40.67   km
     Solar longitude (Ls):    254.96°
    Local True Solar Time:     13.84   decimal hours
           Emission angle:      0.21°
          Incidence angle:     78.10°
              Phase angle:     78.12°
            North azimuth:     94.44°
              Sun azimuth:    300.07°
      Spacecraft altitude:    418.80   km
           Slant distance:    418.80   km

Policy regarding use of processed images

Release date: 16 October 2000
