MOC wide-angle image M08-02009

context image for 2008


MOC wide-angle image M08-02009
MOC wide-angle image M08-02009

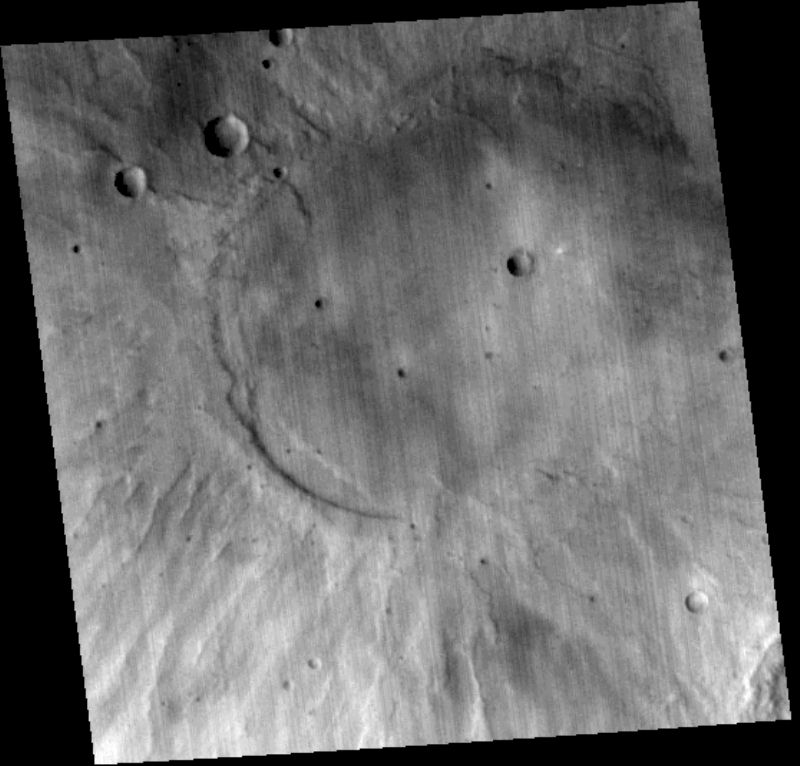

View full-size image, processed, in sinusoidal projection using 267.53°W as prime meridian
(lossy JPEG, medium quality, rapid download)
View full-size image, processed, in sinusoidal projection using 267.53°W as prime meridian
(lossless GIF, best quality, slow download)

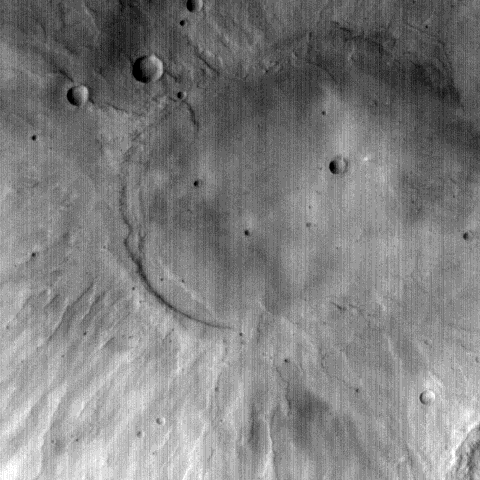

View full-size image, processed but NOT map-projected
Download processed image in PDS .IMG format
Download compressed raw data in PDS .IMQ format

Ancillary data for MOC wide-angle image M08-02009

Acquisition parameters
     Image ID (picno): M08-02009
     Image start time: 1999-10-08T22:47:54.06 SCET
         Image  width:    480      pixels
         Image height:    480      pixels
Line integration time:     80.4800 millisec
   Pixel aspect ratio:      1.06
   Crosstrack summing:      1
    Downtrack summing:      1
     Compression type: MOC-PRED-X-5
            Gain mode:     4A (hexadecimal)
          Offset mode:      7 (decimal)
Derived values
Longitude of image center:    267.53°W
Latitude  of image center:     30.70°S
       Scaled pixel width:    234.38   meters
      Scaled image  width:    113.67   km
      Scaled image height:    119.05   km
     Solar longitude (Ls):    221.05°
    Local True Solar Time:     14.67   decimal hours
           Emission angle:      3.44°
          Incidence angle:     39.41°
              Phase angle:     36.12°
            North azimuth:     93.70°
              Sun azimuth:     15.84°
      Spacecraft altitude:    372.39   km
           Slant distance:    372.99   km

Policy regarding use of processed images

Release date: 16 October 2000
